HDPE Geomembrane Standards: A Professional Guide to GRI-GM13 & ASTM Compliance

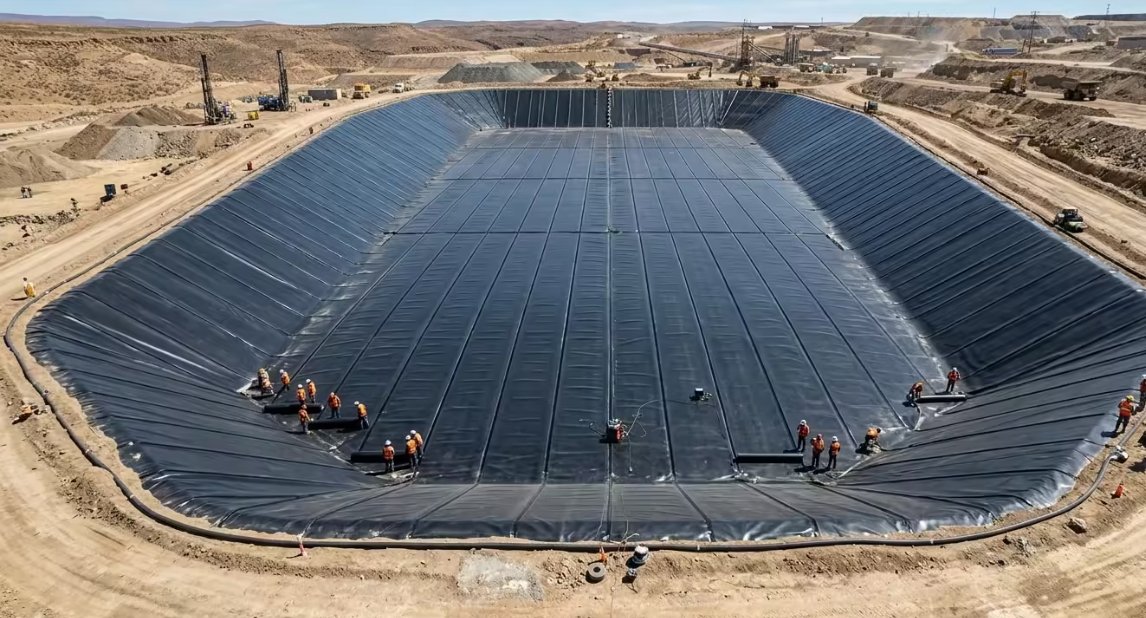

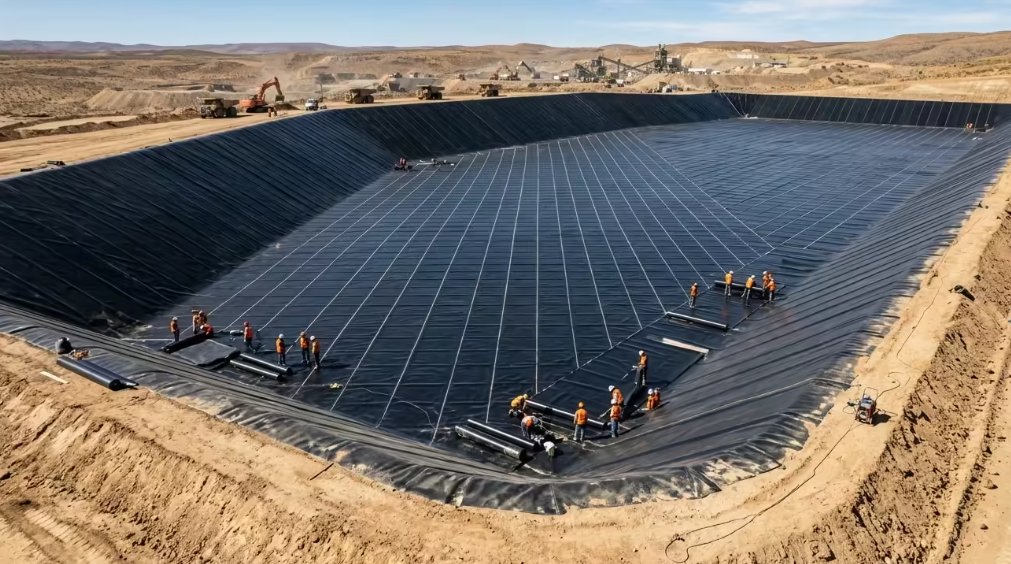

In the high-stakes world of environmental containment—ranging from municipal landfills to hazardous mining leach pads—the integrity of a Geomembrane is the only barrier between a successful operation and an ecological catastrophe. For procurement managers and lead engineers, the challenge isn’t just buying a plastic liner; it’s ensuring that the material meets rigorous HDPE Geomembrane Standards to withstand decades of chemical and UV exposure.

Table of Contents

Why HDPE Geomembrane Standards Govern Global Projects

When we discuss HDPE Geomembrane Standards, we are talking about a predictable performance envelope. HDPE is chosen for its exceptional chemical resistance and low permeability, but these properties are entirely dependent on the quality of the resin and the additives used during extrusion.

Without a standardized framework, manufacturers might use recycled resins or inferior carbon black, leading to rapid degradation. International standards ensure that every square meter of liner installed in a project in the Middle East performs identically to one installed in South America. These standards act as a universal language for quality, ensuring that the physical, mechanical, and chemical properties are verified through repeatable laboratory protocols.

According to the Geosynthetic Institute (GSI), the failure of a containment system is rarely due to a single event but rather a gradual degradation caused by non-compliance with long-term aging requirements. This is why following the most current HDPE Geomembrane Standards is not just a legal formality; it is a critical risk-mitigation strategy.

Difference between GRI-GM13 and ASTM Standards for HDPE

One of the most frequent points of confusion in technical submittals is the Difference between GRI-GM13 and ASTM standards for HDPE. It is vital to understand that these two entities do not compete; rather, they serve different functions in the quality ecosystem.

ASTM International (formerly the American Society for Testing and Materials) provides the “how-to” for testing. For example, ASTM D6693 tells a technician exactly how to pull a sample to measure tensile strength. However, ASTM D6693 does not tell you if a result of 20 kN/m is “good” or “bad”—it only defines the method of measurement.

GRI-GM13, developed by the Geosynthetic Research Institute, is the “Standard Specification.” It is the benchmark that says, “To be considered a high-quality HDPE liner, your tensile strength measured by ASTM D6693 must be at least X.”

Essentially, the Difference between GRI-GM13 and ASTM standards for HDPE is that ASTM provides the ruler, while GRI-GM13 sets the passing grade. A compliant tender must list the GRI-GM13 specification as the target and use ASTM methods to prove the material hits those targets.

The Role of MQC and CQA

A robust HDPE Quality Control program is divided into two phases: Manufacturing Quality Control (MQC) and Construction Quality Assurance (CQA). MQC is performed by the manufacturer at the plant to ensure the roll leaving the factory meets the HDPE Geomembrane Standards cited in the contract.

Key metrics in a standard MQC report include:

• Density (ASTM D1505): Ensures the resin is truly high-density.

• Carbon Black Content (ASTM D1603): Must be between 2.0% and 3.0% for UV protection.

• Thickness (ASTM D5199): Verification that the liner meets the nominal gauge required for the load.

In 2026, the focus of HDPE Quality Control has shifted heavily toward the chemical stability of the liner. It is no longer enough for a liner to be strong on day one; it must maintain that strength after 500 hours of UV exposure and thousands of hours of high-pressure liquid contact. For deeper insights into these testing frequencies, engineers often refer to ASTM International’s Committee D35 on Geosynthetics.

OIT and Stress Crack Resistance

When auditing a supplier for compliance with HDPE Geomembrane Standards, two technical values serve as the ultimate indicators of long-term durability: Oxidative Induction Time (OIT) and Environmental Stress Crack Resistance (ESCR).

OIT measures how long the antioxidants in the Geomembrane can prevent the polymer from reacting with oxygen at high temperatures. There are two types: Standard OIT (ASTM D3895) and High-Pressure OIT (ASTM D5885). While Standard OIT is the baseline, HP-OIT is increasingly required for projects where the liner will be exposed to high temperatures or aggressive chemicals, as it provides a more accurate picture of the additive package’s resilience.

Furthermore, Stress Crack Resistance (measured via the SP-NCTL test, ASTM D5397) is the primary defense against localized mechanical failure. If a manufacturer uses lower-grade resins to save costs, the liner may pass a simple tensile test but fail prematurely when subjected to the constant, multi-axial stresses of a landfill or mining pond. Adhering to the HDPE Geomembrane Standards for stress cracking ensures the molecular chain of the polyethylene is long enough to resist these forces.

Compliance in International Tendering: Avoiding the “Recycled Material” Trap

In the competitive landscape of global infrastructure, some suppliers attempt to lower bids by incorporating “regrind” or recycled plastic into the mix. This is a direct violation of HDPE Geomembrane Standards like GRI-GM13, which explicitly requires the use of virgin, first-quality resin.

Recycled content introduces “points of weakness” in the polymer matrix. These impurities act as catalysts for oxidation, drastically shortening the service life of the Geomembrane. To prevent this, tender documents must require a “Resin Certification” alongside the MQC report.

By demanding strict adherence to HDPE Geomembrane Standards, procurement officers protect the project’s CAPEX. It is far cheaper to pay for a premium liner upfront than to perform a “remedial excavation” five years later when a leak is detected in a primary containment cell.

From Liners to Tanks

While the Geomembrane handles the large-scale ground containment, modern industrial projects often integrate these liners with secondary storage solutions like an Enamel Water Tank or a Stainless Steel Water Tank.

The interface between the liner and the tank—often referred to as the “boot” or “penetration”—must be designed with the same rigor as the HDPE Geomembrane Standards themselves. In high-temperature water storage or corrosive chemical applications, using a high-spec HDPE liner as a secondary containment layer beneath a primary steel tank provides a redundant safety system that meets the highest environmental ESG (Environmental, Social, and Governance) criteria.

Future-Proofing with Advanced HDPE Geomembrane Standards

As we move through 2026, the evolution of HDPE Geomembrane Standards continues to emphasize sustainability and carbon footprint. High-grade liners are now being evaluated not just for their containment ability, but for their end-of-life recyclability and the energy efficiency of the manufacturing process.

For an EPC contractor, staying updated on the latest revisions to the GRI-GM13 specification is the best way to ensure the longevity of a facility. By prioritizing HDPE Quality Control and demanding third-party lab verification, you ensure that the containment system remains invisible—performing its job silently beneath the earth for generations.

FAQ

What is the most important test for a long-term project?

While tensile strength is basic, Oxidative Induction Time (OIT) is the most critical for longevity. It determines how long the liner will resist the chemical “aging” that leads to brittleness and failure. Always check the OIT values in your HDPE Quality Control reports.

Can I use ASTM standards alone for a project specification?

It is not recommended. Because of the Difference between GRI-GM13 and ASTM standards for HDPE, using only ASTM methods means you haven’t set a “minimum quality” threshold. You must cite GRI-GM13 (or a similar specification) to define what the passing values are.

How often should MQC testing be performed?

Standard HDPE Geomembrane Standards usually require thickness and density testing every roll, while more complex tests like Stress Crack Resistance are performed every 5th or 10th roll (or every 20,000 to 45,000 kg of resin).
